AUTOMATIC SLIDING AND SWINGING GATES WITH REMOTE CONTROL

Solutions Unlimited supplies, installs, maintains and supports automatic swing and sliding gate systems in Kenya for residential, commercial, industrial and institutional properties. Gate automation converts a suitable manual gate into a motorised access point, allowing authorised users to open and close the gate using remote controls, keypads, access-control credentials, intercom systems or other compatible controls. Click here to buy

The right system depends on the type and condition of the gate, its weight and dimensions, frequency of operation, available power, security requirements and the environment in which it will operate.

What Is Gate Automation?

Gate automation uses an electric operator and control system to move a swing or sliding gate without requiring the user to open it manually.

A typical installation may include:

Gate motor or operator
Control board
Remote controls or other access devices
Radio receiver
Safety photocells
Manual emergency release
Mounting hardware
Warning or identification signage where required
Battery backup where supported
Keypad, card reader or other access-control device where required
Intercom integration where required

The exact components depend on the gate design and selected automation system.

Automation does not correct an unsuitable gate. The gate must be structurally sound, correctly aligned and able to move freely before the operator is installed. Gate weight, dimensions, hinges, rollers, tracks, stops and mechanical resistance all influence the choice and performance of the motor.

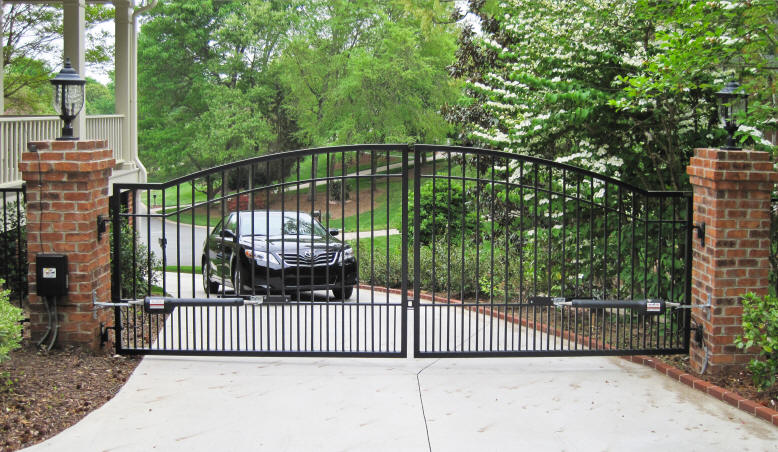

Automatic Swing Gate Systems

Swing gate automation is designed for gates that open inward or outward around hinges.

Depending on the gate design, an installation can use:

Articulated-arm operators
Linear or ram-type operators
Underground operators
Single-leaf or double-leaf configurations

The appropriate operator is selected according to factors such as gate-leaf length, weight, opening geometry, usage frequency and available mounting space.

Depending on the model, features may include:

Remote opening and closing
Automatic closing
Pedestrian opening
Adjustable operating parameters
Obstacle detection
Photocell integration
Battery backup
Manual release during power failure
Integration with access-control systems

For example, manufacturers such as CAME and FAAC publish model-specific operating limits rather than one universal capacity for all swing-gate motors. CAME’s current swing-gate ranges specify maximum leaf dimensions and other operating parameters by model, while FAAC publishes specific limits for individual operators.

Automatic Sliding Gate Systems

Sliding gate automation is suitable where the gate moves horizontally along a track or guide system.

A typical installation includes:

Sliding gate motor
Control electronics
Gear rack fixed to the gate
Pinion drive
Radio receiver
Remote controls
Safety photocells
Manual release mechanism
Appropriate mounting and fixing components

The motor must be selected according to the gate’s weight, length, operating frequency, track condition and expected traffic.

A heavy industrial gate operating continuously at a factory entrance, for example, may require a substantially different operator from a residential sliding gate used a few times a day.

Depending on the model, sliding-gate operators may support automatic closing, pedestrian opening, adjustable movement parameters, obstacle detection and battery backup.

Swing Gate vs Sliding Gate Automation

The gate itself usually determines which automation system is appropriate.

Requirement	Swing Gate	Sliding Gate
Gate movement	Hinged leaves swing open	Gate moves horizontally
Main operator	Swing-arm, linear or underground motor	Sliding gate motor and rack
Space requirement	Requires clear swing area	Requires sufficient side-run space
Important mechanical checks	Hinges, posts, gate alignment	Track, rollers, rack alignment
Typical applications	Homes, offices, estates, institutions	Commercial, industrial, estates, warehouses
Access options	Remote, keypad, card, intercom, etc.	Remote, keypad, card, intercom, etc.

The choice should be based on the existing gate and site conditions rather than simply selecting the motor with the highest advertised capacity.

Gate Automation and Access Control

An automated gate does not have to operate only from a remote control.

Depending on the system, it can integrate with:

RFID/card access control
Biometric access control
Keypads
GSM/mobile access
Intercom systems
Vehicle detection systems
Exit buttons
Remote-control transmitters
Other compatible security systems

For example, an apartment entrance may use an intercom so that a resident can communicate with a visitor before releasing the gate. A commercial facility may use an access-control reader to identify authorised personnel before opening the gate.

Gate Automation with Intercom Systems

Combining gate automation with an audio or video intercom can improve control over visitor access.

A typical arrangement allows the occupant or security personnel to:

Receive a visitor call.
Communicate with the person at the gate.
Verify or identify the visitor where video is available.
Release the gate remotely when appropriate.

This can reduce unnecessary movement to the gate and provide a more controlled visitor-management process.

Remote Controls, Keypads and Mobile Access

Remote controls remain one of the simplest ways to operate an automated gate.

For sites requiring more controlled access, additional authentication methods may be appropriate, including:

PIN keypads
RFID cards or tags
Biometric readers
GSM/mobile-based controls
Intercom release
Vehicle identification systems
Multi-factor access arrangements

The selected control method should match the security requirements and expected users of the property.

Safety Features for Automated Gates

An automated gate is a moving machine, so safety should be considered during selection, installation, commissioning and maintenance.

Depending on the operator and application, safety provisions can include:

Infrared photocells
Obstacle detection
Electronic torque or force limitation
Safety edges
Encoders
Warning lights
Manual emergency release
Appropriate warning signs

CAME’s documentation, for example, identifies photocells and sensitive safety devices as part of automatic-gate safety arrangements and requires the completed system to be checked for compliance with applicable impact-force requirements.

FAAC similarly identifies safety accessories such as photocells and safety edges within its automation systems.

Photocells and Obstacle Detection

Photocells use an infrared beam to detect an interruption across a protected area.

If the beam is interrupted during gate movement, the control system can respond according to its programmed safety logic—for example, stopping or reversing the gate.

Photocells should be correctly positioned and aligned, and their operating area should remain clear. Vegetation, dirt, physical obstructions or accidental damage can affect their performance.

Manufacturer maintenance guidance recommends checking safety devices, alignment, moving components, electrical connections and manual-release mechanisms as part of routine servicing.

Manual Release During Power Failure

A properly selected automated gate should provide a method of manually releasing the operator when normal electrical operation is unavailable.

This allows authorised users to open the gate when there is:

A mains power failure
A depleted backup battery
An operator fault
A control-system problem

The manual-release mechanism varies by operator and should remain accessible to authorised personnel.

CAME confirms that its swing and sliding gate automation products include manual release systems, with selected 24V systems also supporting backup-battery connection.

Battery Backup and Alternative Power

Some gate automation systems can incorporate backup batteries to maintain operation during a power interruption.

Battery backup is particularly useful for:

Residential estates
Apartment compounds
Commercial premises
Security-controlled entrances
Sites where uninterrupted vehicle access is important

Solar-assisted or solar-powered configurations may also be appropriate for sites where mains power is unavailable or unreliable, but the suitability depends on the selected operator, battery system, solar equipment and expected usage.

We assess the power requirements rather than assuming that every gate motor is suitable for solar operation.

Installation of Automatic Gates

Professional installation begins with assessing the gate rather than simply mounting a motor.

Our installation process can include:

Gate assessment

We check the gate structure, hinges, rollers, track, alignment and general mechanical condition.

Motor selection

The operator is selected according to gate dimensions, weight, usage frequency and operating conditions.

Mechanical installation

The motor and associated components are securely installed and correctly aligned.

For sliding gates, the rack and pinion must be correctly positioned to allow smooth movement.

For swing gates, operator mounting geometry must be appropriate for the gate and available opening space.

Electrical and control installation

The control board, receiver, photocells and other accessories are connected according to the manufacturer’s installation requirements.

Access-control integration

Where required, we integrate remote controls, keypads, biometric readers, intercoms or other compatible access devices.

Safety testing and commissioning

The gate is tested for movement, stopping, reversing, obstruction detection, photocell operation and manual release.

The completed system should be adjusted and commissioned according to the manufacturer’s requirements and applicable safety standards.

Existing Gates Can Often Be Automated

Automation does not necessarily require a new gate.

A suitable existing swing or sliding gate can often be motorised if:

The structure is sufficiently strong
Hinges or rollers are in good condition
The gate moves freely
The track is suitable
The gate is correctly aligned
There is adequate space for the operator
The gate’s weight and dimensions fall within the selected operator’s limits

If the gate is dragging, badly aligned or structurally damaged, those issues should be corrected before automation.

This is an important part of professional installation because installing an oversized motor on a mechanically poor gate does not solve the underlying problem.

Gate Automation for Properties in Kenya

Automatic gates are used in a wide range of Kenyan environments.

Homes and Residential Estates

Automation provides convenient vehicle access while allowing residents to control entry without manually opening the gate.

Apartments and Gated Communities

Gate automation can be combined with intercoms, access cards, keypads and other access-control systems.

Offices and Commercial Buildings

Automated entrances can help control vehicle access while reducing the need for staff to operate the gate manually.

Warehouses and Factories

Heavy-use commercial and industrial entrances require operators selected for the gate weight and traffic frequency.

Schools and Institutions

Automation can help manage vehicle entrances while keeping access under the control of authorised personnel.

Hotels and Hospitality Facilities

Gate automation can support controlled vehicle access for residents, guests, staff and service providers.

Farms, Estates and Remote Properties

Where electrical infrastructure is limited, an appropriately designed battery or solar-assisted system may be considered.

Gate Automation Brands

Solutions Unlimited can supply and support gate automation equipment from established manufacturers, subject to current availability and project requirements.

Depending on the application, brands encountered in the market include CAME, FAAC, BFT, NICE, Centurion and other specialist automation manufacturers.

Brand alone should not determine the selection. The important considerations include:

Gate type
Gate dimensions
Gate weight
Operating frequency
Mechanical condition
Power availability
Required access-control method
Safety requirements
Availability of compatible accessories and spare parts
Local technical support

Gate Automation Maintenance

Regular servicing helps identify mechanical and electrical problems before they result in a gate failure.

Maintenance checks may include:

Gate alignment
Hinges and moving joints
Sliding rollers and tracks
Gear rack and pinion
Motor operation
Electrical connections
Photocell alignment
Safety devices
Manual-release mechanism
Remote controls
Backup batteries
Mounting points
Corrosion or physical damage

Manufacturer guidance from CAME recommends inspecting structural components, safety devices, moving parts, electrical connections and the manual-release mechanism during service visits.

Genuine Spare Parts and Repairs

Using compatible or genuine replacement components is important when maintaining an automated gate.

Depending on the system, replacement requirements may include:

Remote controls
Batteries
Photocells
Control boards
Receivers
Motors or operators
Gear racks
Safety accessories
Manual-release components
Power supplies
Intercom components

The availability of replacement parts can be an important consideration when selecting an automation system, particularly for commercial and industrial sites where extended downtime can affect operations.

Solutions Unlimited can assist with troubleshooting, maintenance and replacement of supported components, subject to model and parts availability.

Warranty and Technical Support

Solutions Unlimited provides gate automation solutions backed by up to two years manufacturer’s warranty, 14 days of free technical support and lifetime virtual support, subject to the applicable product, manufacturer and service terms.

Warranty periods can vary by product and manufacturer, so the applicable warranty should be confirmed in the quotation or product documentation.

Our technical support can assist with installation-related questions, configuration, troubleshooting, maintenance and replacement requirements for systems supplied by Solutions Unlimited.

Selecting a gate motor is only one part of a successful automation project.

Solutions Unlimited assists clients with:

Gate and site assessment
Operator selection
Swing and sliding gate automation
Access-control integration
Intercom integration
Safety-device installation
Remote-control setup
Battery-backup options
Maintenance
Troubleshooting
Repairs and replacement components
After-sales technical support

Our approach is to match the automation system to the actual gate and operating environment rather than recommending a motor based solely on advertised power or price.

Frequently Asked Questions

Can an existing gate be automated?

Yes, provided the gate is structurally suitable and moves freely. Hinges, rollers, tracks, alignment, gate weight and dimensions should be assessed before selecting an operator.

What is the difference between swing and sliding gate automation?

Swing automation moves hinged gate leaves around a pivot, while sliding automation moves the gate horizontally along a track. The existing gate design normally determines which system is appropriate.

How much does automatic gate installation cost in Kenya?

There is no single installation price because the cost depends on the gate type, motor capacity, gate condition, access controls, safety devices, power requirements and installation complexity. A site assessment or project specification provides a more reliable quotation.

Can an automatic gate work during a power outage?

Some systems support backup batteries, while most operators also have a manual-release mechanism for emergency or manual operation. The exact arrangement depends on the model.

Can a gate motor be powered by solar?

Some systems can be configured for solar or solar-assisted operation. Suitability depends on the operator, battery capacity, solar installation, gate usage and available sunlight.

Can I control my automatic gate from a phone?

Depending on the system, mobile or GSM-based control can be integrated. The available functions depend on the selected equipment and connectivity arrangement.

Can an automatic gate work with an intercom?

Yes. Compatible gate automation can be integrated with audio or video intercom systems so that an authorised person can release the gate after communicating with a visitor.

Can I use a biometric reader to open an automatic gate?

Yes, where the biometric access-control system and gate controller support the required interface. This can be useful for controlled staff or resident access.

Do automatic gates have safety sensors?

Many systems support photocells and other safety devices, but the exact safety equipment depends on the operator and installation. Safety devices should be selected, installed, aligned and tested according to the system’s requirements.

What happens if the photocells are blocked?

The gate controller may stop, prevent movement or reverse the gate depending on its configuration. Photocells must be kept clean, aligned and unobstructed.

How often should an automatic gate be serviced?

The appropriate service interval depends on the operator, gate usage and manufacturer’s maintenance requirements. High-traffic commercial and industrial gates generally require closer monitoring than lightly used residential gates.

Why is my automatic gate slow or struggling to open?

Possible causes include mechanical resistance, damaged rollers or hinges, poor alignment, an obstruction, electrical problems, battery issues or an operator that is unsuitable for the gate. The gate and automation system should be inspected rather than simply increasing motor settings.

Can an automatic gate be repaired?

Many faults can be repaired, depending on the operator, availability of replacement parts and condition of the system. A technician should diagnose the problem before components are replaced.

Which is better: CAME, FAAC, BFT, NICE or Centurion?

There is no single best brand for every installation. The appropriate choice depends on the gate, operating frequency, required features, safety configuration, power supply, spare-parts availability and technical support.

Do you supply spare parts?

We can assist with compatible or genuine replacement components for supported gate-automation systems, subject to model and availability.

What warranty do your gate automation systems have?

Selected systems are supplied with up to two years manufacturer’s warranty. The exact warranty depends on the product and applicable manufacturer terms.

Automatic Gate Automation for Secure, Convenient Access

A reliable automated gate is the result of choosing the correct operator, preparing the gate properly, installing the appropriate safety devices and maintaining the system after commissioning.

Solutions Unlimited supplies, installs and supports automatic swing and sliding gate automation systems in Kenya, with options for remote controls, intercoms, access control, keypads, mobile access and other compatible technologies.

Whether the requirement is a residential entrance, apartment development, commercial property, warehouse, factory, school, hotel or larger estate, we can assess the application and recommend an automation solution based on the gate and its intended use. Our automated gate systems are installed and supported in Nairobi, Mombasa, Kisumu, Eldoret, Nakuru, Naivasha, Nanyuki, Meru, Embu, Kericho, Kitale, Kisii, Busia, Namanga, and surrounding regions, including residential estates such as Karen, Runda, Kilimani, and Kileleshwa.

SOME OF OUR LOCAL AND INTERNATIONAL CORPORATE CLIENTS:
